NVS DeepinMind | iDS-6716NXI-M1/AI(STD)(B)

iDS-6716NXI-M1/AI(STD)(B)

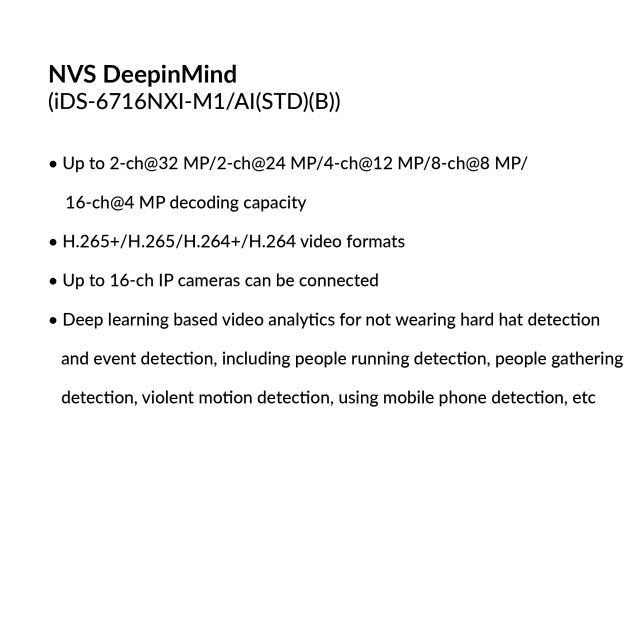

- Deep learning based video analytics
- Up to 16-ch IP cameras can be connected
- H.265+/H.265/H.264+/H.264 video formats
- Up to 2-ch@32 MP/2-ch@24 MP/4-ch@12 MP/8-ch@8 MP/16-ch@4 MP decoding capacity
S$4,104.80 S$8,502.80
(Excluding GST)
Quantity
-
+
Asia
Ubi:
Bukit batok:
Tuas:
Please contact sales for latest stock quantities
  • Description
iDS-6716NXI-M1/AI(STD)(B)
NVS DeepinMind

Product Specifications


AI Open Platform Performance
Live Video Analysis
Up to 4-ch (4-ch@4 MP, 2-ch@6 MP, 1-ch @8 MP)
Auto-Switch Video Analysis
Up to 16-ch (switching time should between 10 to 3600 sec)
Scheduled Capture Analysis
Up to 16-ch (switch time should between 3 to 3600 seconds)
Video and Audio
IP Video Input
16-ch
Video Output Mode
HDMI1/VGA1 simultaneous output, HDMI2/VGA2 simultaneous output
Audio Output
1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio
1-ch, RCA (2.0 Vp-p, 1 k Ω)
HDMI Output
HDMI18K (7680 × 4320)/30 Hz, 4K (3840 × 2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1080P (1920 × 1080)/60 Hz
HDMI24K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz
*: When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p.
VGA Output
VAG1/VGA2:1080P (1920 × 1080)/60 Hz
Auxiliary Interface
SATA
1 SATA interface
Capacity
Up to 16 TB capacity for each HDD,1 built-in 3.5-inch 1 TB SATA hard disk
Serial Interface
1 RS-232 interface, 2 RS-485 interface
USB Interface
Rear panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
Dimension (W × D × H)
320 × 243 × 70 mm (12.6 × 9.6 × 2.8 inch)
Weight
≤ 5kg

Datasheet

Download Datasheet
