Ebelco 800lbs EM Lock | Ebelco-SS800 (Outdoor EM Lock)

Name: Ebelco 800lbs EM Lock | Ebelco-SS800 (Outdoor EM Lock)
Brand: Viskou – Connecting Intelligence, Powering The Future
SKU: VEMP103840
Price: 137 SGD
Availability: OutOfStock

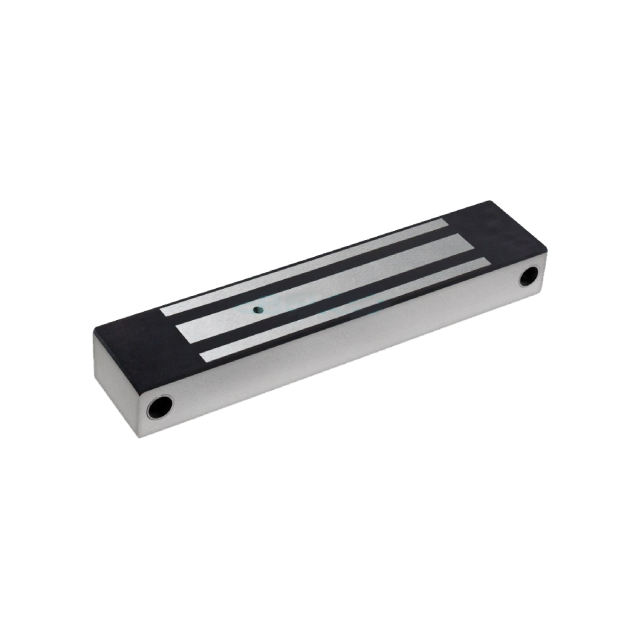

Ebelco-SS800 (Outdoor EM Lock)

- Durable and silent operation
- Single side installation design
- Heavy duty stainless steel case
- Dual voltage selectable (12VDC/24VDC)

S$137.00 ~~S$205.00~~

(Excluding GST)

Add to Favorite Items

Description

Ebelco-SS800 (Outdoor EM Lock)
Ebelco 800lbs EM Lock

Product Specifications

Voltage Input	12 VDC / 24 VDC
Current Draw	12V / 480mA ; 24V / 240mA (±5%)
Holding Force	Up to 800 lbs (362 kg)
Hall Effect Contact	30Vdc, 0.1A, 3W
Anti-Rust Surface Treatment	Blue Zinc Plating
Operating Temperature	0~55° C (32~131° F)
Operating Humidity	0~95% (non condensing)
Weight (Magnet)	1.80 kg (±1%)
Dimensions	Magnet - (L)220 x (W)46x (T)28 mm Armature - (L)182x (W)44x (T)11 mm
