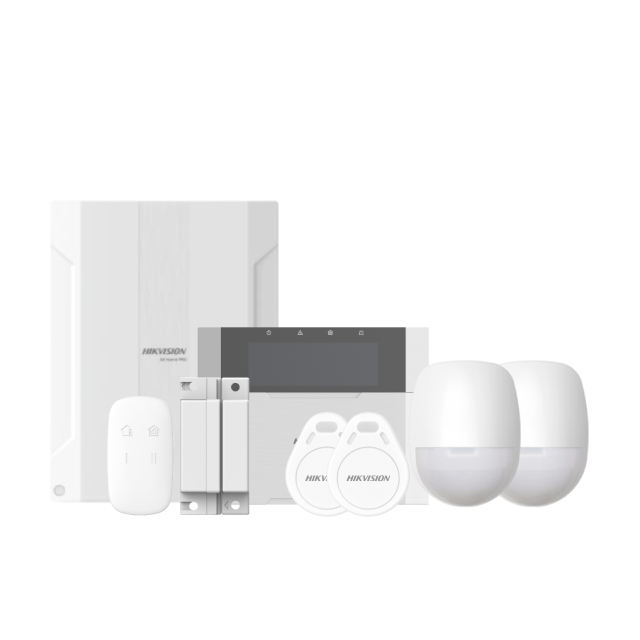

AX Hybrid Pro Kit | DS-PHA64-Kit-WB(B)

Name: AX Hybrid Pro Kit | DS-PHA64-Kit-WB(B)
Brand: Viskou – Connecting Intelligence, Powering The Future
SKU: 314300673
Price: 456.4 SGD
Availability: InStock

DS-PHA64-Kit-WB(B)

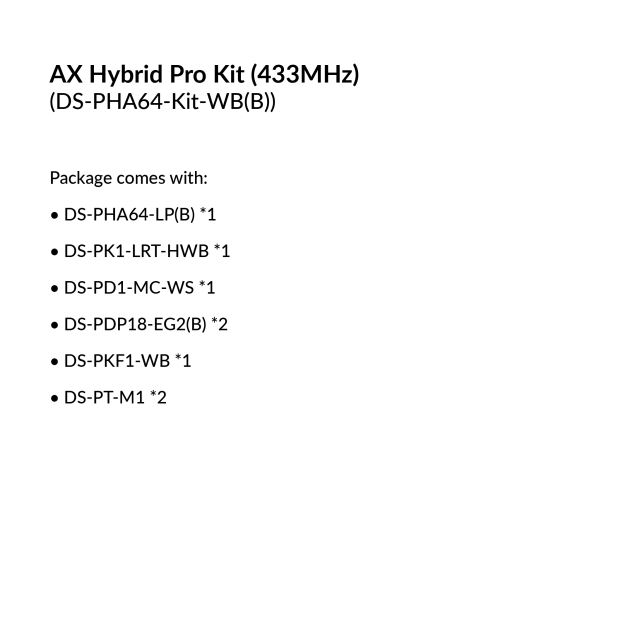

Comes with
- DS-PT-M1 *2
- DS-PKF1-WB *1
- DS-PD1-MC-WS *1
- DS-PHA64-LP(B) *1
- DS-PK1-LRT-HWB *1
- DS-PDP18-EG2(B) *2

S$456.40 ~~S$945.40~~

(Excluding GST)

Add to Favorite Items

Description

DS-PHA64-Kit-WB(B)
AX Hybrid Pro Kit

Product Specifications

Zones	64 (8 On-board zones, max 8 wired PIRCAM)
Area	32
User	Installer: 1 Administrator: 1 Operator: 62
SMS notification	Support (with GPRS/3G/4G module)
ARC protocol	ISAPI: Supports iVMS-4200 client software and web client Cloud P2P: Supports cloud P2P privacy protocol DC-09: ARC accessible (ADM-CID/SIA-DCS) CSV-IP: Supports CSV-IP ISUP: Supports ISUP 5.0
Alarm input	64 (Including 8 on-board zones)
Alarm output	64 (Including 2 on-board relay outputs and 2 on-board I/O outputs)
Power Output	1. Bell : maximum 12V 1.2A 2. AUX : maximum 12V 1.5A
Sounder output	1 Wired on-board sounder output
Tamper-Proof	1 switch to detect removal from mounting 1 switch to detect front cover open
Battery type	Lead acid battery (12V 7Ah, battery is not included by default)
Battery life span	Up to 36hrs
Indicator	4 On-board LEDs: ① 1 AC power LED indicator (Green) ② 1 System status LED indicator (Green/Red) ③ 1 PSTN status LED indicator (Green/Red) ④ 1 Mobile communication status LED indicator (Green/Red)
Shell material	Plastic
Dimension (WxHxD)	261 mm × 199 mm × 86.4 mm
Weight	997 g
