| Display |
Screen Size |
23.8 inch, 60.45cm |
| Active Display Area |
527.04 mm (H) × 296.46 mm (V) |
| Resolution |
1920 × 1080 |
| Backlight |
E-LED |
| Pixel Pitch |
0.2745 (H) mm × 0.2745 (V) mm |
| Brightness |
250 cd/m² |
| Viewing Angle |
178° (H)/178° (V) |
| Color Depth |
8 bit |
| Contrast Ratio |
4000 : 1 |
| Response Time |
7 ms |
| Refresh Rate |
60 Hz , Max. 100 Hz |
| Haze |
Haze 25% |
| Reliability |
7 × 24 H |
| Color Gamut |
72% NTSC |
| Power |
Power Supply |
DC 12 V, 2.0 A |
| Power Consumption |
≤ 24 W |
| Standby Consumption |
≤ 0.5 W |
| General |
Casing Material |
Plastic |
| VESA |
75 mm × 75 mm (4-M4 × 6 mm) |
| Bezel Width |
2.0 mm (top/left/right), 23.55 mm (bottom) |

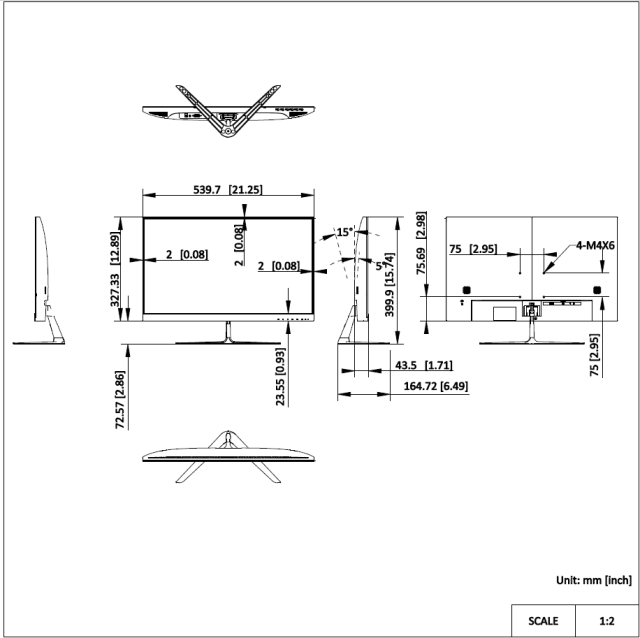

| Product Dimensions (W × H × D) |
With base: 539.7 (W) mm × 399.9 (H) mm × 164.72(D) mm 21.25 (W) inch × 15.74 (H) inch × 6.49 (D) inch
Without base: 539.7 (W) mm × 327.33 (H) mm × 43.5 (D) mm 21.25 (W) inch × 12.89 (H) inch × 1.71 (D) inch |
| Package Dimensions (W × H × D) |
611 (W) mm × 405 (H) mm × 118 (D) mm
24.06(W) × 15.94(H) × 4.65 (D) inch |
| Net Weight |
2.85 ± 0.5 kg |
| Gross Weight |
3.85 ± 0.5 kg |
| Packing List |
Monitor × 1, Base component × 1, Power adapter (12 V, 2 A) × 1, HDMI cable (1.5 m) × 1, User manual × 1, Multilingual manual × 1 |
| Remarks |
The base is included by default. The product appearance and parameters in this specification may vary from your actual device. Please consult our local sales staff for further information |
