Image Sensor
|
2 MP CMOS
|
Signal System
|
PAL/NTSC
|
Min. Illumination
|
0.02 Lux @ (F1.2, AGC ON), 0 Lux with IR
|
Angle Adjustment
|
Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
|
Wide Dynamic Range
|
Digital WDR
|
Field of Vision
|
2.8 mm: 102° (H), 55° (V), 123° (D)
3.6 mm: 81° (H), 42° (V), 100° (D)
|
IR Range
|
Up to 20 m
|
Max. Resolution
|
1920 (H) × 1080 (V)
|
Max. Frame
|
TVI: 1080p@25fps/30fps
AHD: 1080p@25fps/30fps
CVI: 1080p@25fps/30fps
CVBS: PAL/NTSC
|
Power
|
12 VDC ± 25%
|
Working Temperature
|
-40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing)
|
Material
|
Metal
|
Protection Level
|
IP66
|

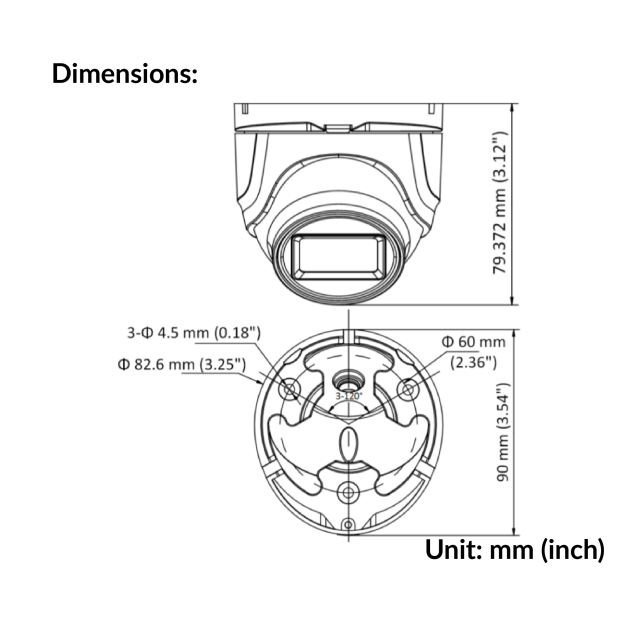

Dimensions
|
90 mm × 82.6 mm × 79.372 mm (3.54" × 3.25" × 3.12")
|
Weight
|
Approx. 360g (0.79 lb.)
|
