Image Sensor
|
1/2.7" Progressive Scan CMOS
|
Min. Illumination
|
Color: 0.028 lux @(F2.0, AGC ON), 0 lux with IR on
|
Day & Night
|
IR Cut Filter
|
WDR
|
120 dB
|
Angle Adjustment
|
Pan: -30° to 30°, tilt: 0° to 75°, rotate: 0° to 360°
|
Field of Vision
|
2.8 mm: 114° (H), 62° (V), 135° (D)
4 mm: 86° (H), 46° (V), 102° (D)
6 mm: 54° (H), 30° (V), 62° (D)
|
IR Distance
|
Up to 10 m
|
Video Compression
|
H.265/H.264
|
Max. Resolution
|
1920 × 1080
|
Max. Frame
|
50Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720)
60Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)
|
Environment Noise Filtering
|
Yes
|
Power
|
12 VDC ± 25% PoE (802.3af, class 3)
|
Working Temperature
|
-30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
|
Protection
|
Ingress protection: IP66 (IEC 60529-2013), IK08 (IEC 60529-2013)
|

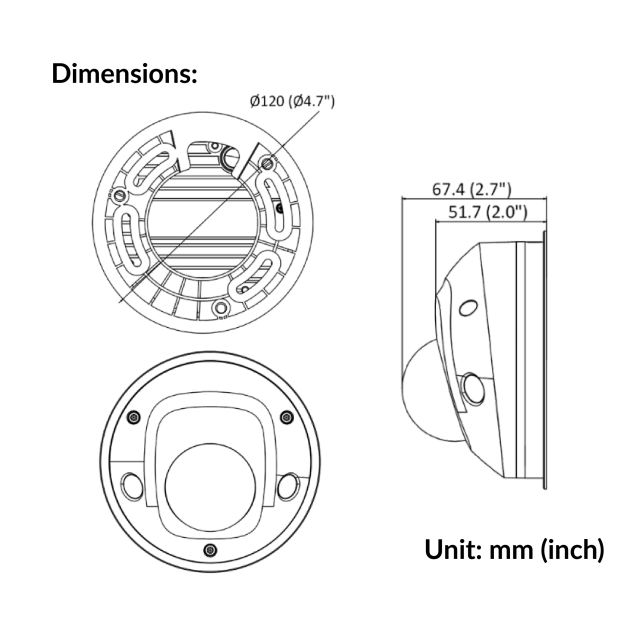

Dimensions
|
Ø 120 mm × 67.4 mm (Ø 4.7" × 2.7")
|
Weight
|
Approx. 400 g (0.9 lb.)
|
