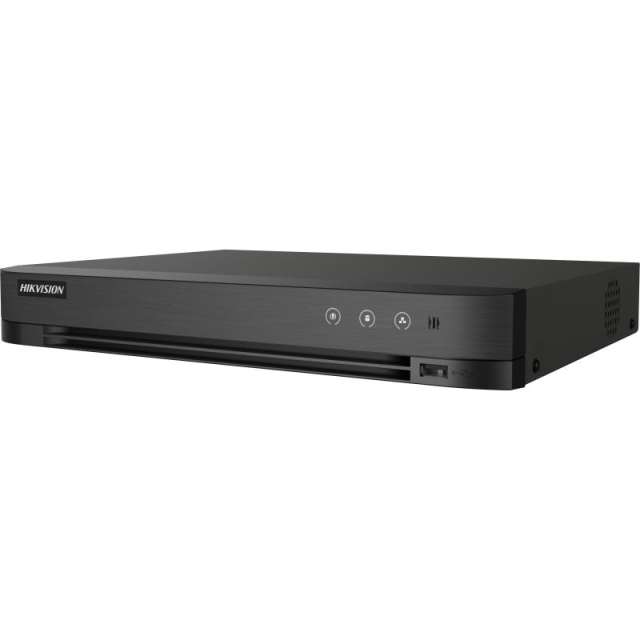

iDS-7204HUHI-M1/XT
4-ch 5 MP 1U H.265 AcuSense DVR
Product Specifications
Face Picture Comparison
|
Face picture comparison, face picture search;
2-ch face picture comparison alarm (HD analog camera)
|
Face Picture Library
|
Up to 16 face picture libraries
|
IP Video Input
|
8-ch (up to 16-ch), each up to 8MP
|
Analog Video Input
|
4-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
|
Two-Way Audio
|
1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
|
Encoding Resolution
|
Main stream:
8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps
1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
*: 8 MP@8 fps is only available for channel 1, 8 MP Lite is only available for channel 2 to channel 4.
Sub-stream:
WD1/4CIF/CIF@25 fps (P)/30 fps (N)
|
Video Bitrate
|
32 Kbps to 10 Mbps
|
Dual-stream
|
Support main stream or sub stream
|
Alarm In/Out
|
N/A (optional to support);4/1
|
Total Bandwidth
|
96 Mbps
|
SATA
|
1 SATA interface
|
Capacity
|
up to 10 TB capacity for each disk
|
Power Supply
|
12 VDC, 1.5 A
|
Power Consumption
|
≤ 10 W
|
Working Temperature
|
-10 °C to 55 °C (14 °F to 131 °F)
|
Working Humidity
|
10% to 90%
|
Weight
|
≤ 1.16 kg (2.6 lb)
|
Dimension (W × D × H)
|
319 × 236 × 48 mm (12.6 × 9.3 × 1.9 inch)
|
