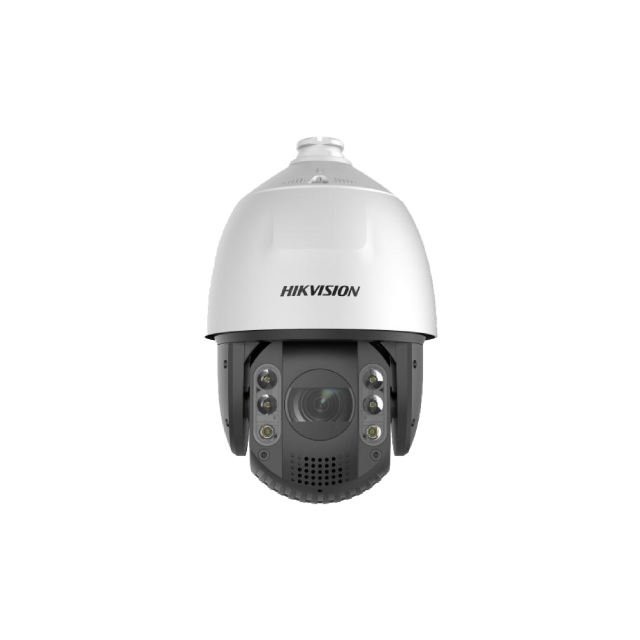

7-inch 2MP 32X Powered by DarkFighter IR Network Speed Dome | DS-2DE7A232IW-AEB (T5)

Name: 7-inch 2MP 32X Powered by DarkFighter IR Network Speed Dome | DS-2DE7A232IW-AEB (T5)
Brand: Viskou – Connecting Intelligence, Powering The Future
SKU: 327000238
Price: 2195.2 SGD
Availability: InStock

DS-2DE7A232IW-AEB (T5)

- 2 MP resolution
- Audio visual alarm
- Up to 200 m IR distance
- 32× optical zoom and 16× digital zoom
- Focuses on human and vehicle targets classification
- Excellent low-light performance with powered-by-DarkFighter technology

S$2,195.20 ~~S$4,547.20~~

(Excluding GST)

Add to Favorite Items

Description

DS-2DE7A232IW-AEB (T5)
7-inch 2 MP 32X Powered by DarkFighter IR Network Speed Dome

Product Specifications

Image Sensor	1/2.8" progressive scan CMOS
Max. Resolution	1920 × 1080
Day & Night	IR cut filter
Zoom	32x optical, 16x digital
Focal Length	4.8 mm to 153 mm
Zoom Speed	Approx. 4.8 s
FOV	Horizontal field of view: 50.8° to 2.6° (wide-tele), Vertical field of view: 29.4° to 1.5° (wide-tele), Diagonal field of view:57.4° to 3° (wide-tele)
Supplement Light Type	Supplement Light Type
Supplement Light Range	IR Distance: up to 200 m
Movement Range (Pan)	360°
Movement Range (Tilt)	-15° to 90° (auto flip)
Main Stream	50 Hz: 50 fps (1920 × 1080, 1280 × 960, 1280 × 720); 60 Hz: 60 fps (1920 × 1080, 1280 × 960, 1280 × 720)
Wide Dynamic Range (WDR)	120 dB
Built-in Speaker	1 built-in speaker with effective distance reaching max. 30 meters
Material	ADC12

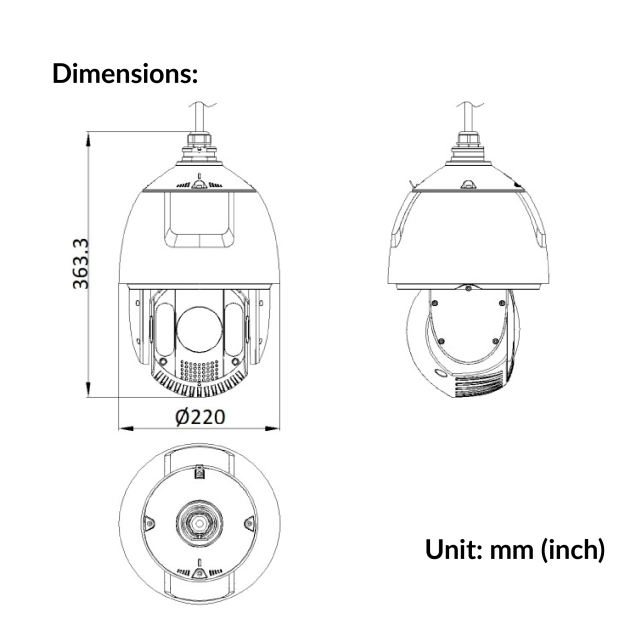

Dimension	Ø 220 mm × 363.3 mm (Ø 8.66" × 13.91")
Weight	Approx. 5 kg (11.03 lb.)
Protection	IP66 (IEC 60529-2013), IK10 (excluding glass window), TVS 6000V lightning protection, surge protection and voltage transient protection

Datasheet

Download Datasheet

Customer Reviews

Write a review

Sign In With:

7-inch 2MP 32X Powered by DarkFighter IR Network Speed Dome | DS-2DE7A232IW-AEB (T5)

Quantity

Image Sensor

1/2.8" progressive scan CMOS

Max. Resolution

1920 × 1080

Day & Night

IR cut filter

Zoom

32x optical, 16x digital

Focal Length

4.8 mm to 153 mm

Zoom Speed

Approx. 4.8 s

FOV

Horizontal field of view: 50.8° to 2.6° (wide-tele), Vertical field of view: 29.4° to 1.5° (wide-tele), Diagonal field of view:57.4° to 3° (wide-tele)

Supplement Light Type

Supplement Light Type

Supplement Light Range

IR Distance: up to 200 m

Movement Range (Pan)

360°

Movement Range (Tilt)

-15° to 90° (auto flip)

Main Stream

50 Hz: 50 fps (1920 × 1080, 1280 × 960, 1280 × 720); 60 Hz: 60 fps (1920 × 1080, 1280 × 960, 1280 × 720)

Wide Dynamic Range (WDR)

120 dB

Built-in Speaker

1 built-in speaker with effective distance reaching max. 30 meters

Material

ADC12

Dimension

Ø 220 mm × 363.3 mm (Ø 8.66" × 13.91")

Weight

Approx. 5 kg (11.03 lb.)

Protection

IP66 (IEC 60529-2013), IK10 (excluding glass window), TVS 6000V lightning protection, surge protection and voltage transient protection

Horizontal field of view: 50.8° to 2.6° (wide-tele),
Vertical field of view: 29.4° to 1.5° (wide-tele),
Diagonal field of view:57.4° to 3° (wide-tele)

50 Hz: 50 fps (1920 × 1080, 1280 × 960, 1280 × 720);
60 Hz: 60 fps (1920 × 1080, 1280 × 960, 1280 × 720)
