display port tesy 24+inch DS-7732NXI-K4 Hikvision 32-ch 1.5U K Series AcuSense 4K NVR

4-inch 2 MP 15X IR Analog Speed Dome | DS-2AE4215TI-D

Name: 4-inch 2 MP 15X IR Analog Speed Dome | DS-2AE4215TI-D
Brand: Viskou E-Shop
SKU: 301205277
Price: 554 SGD
Availability: InStock

DS-2AE4215TI-D

- 2MP
- 1080P
- 15x Optical Zoom
- 100m IR Distance
- Switchable TVI/AHD/CVI/CVBS video output

S$554.00 ~~S$1,007.00~~

(Excluding GST)

Quantity

0 In Stock, Ubi

6 In Stock, Bukit batok

4 In Stock, Tuas

Add to Favorite Items

Description

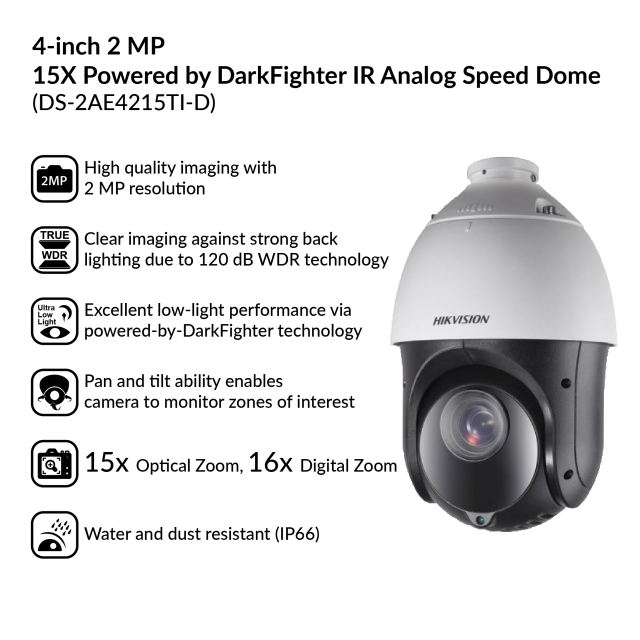

2 MP IR Turbo 4-Inch Speed Dome

Hikvision DS-2AE4215TI-D(E) IR Turbo 4-Inch Speed Dome is able to capture high quality images in poor light environment. The black anti-reflective glass increases the luminousness which helps IR distance reach up to 100 m. The embedded CMOS chip makes WDR, and real-time 1920 × 1080 resolution possible. With the help of the 15× optical zoom, and IR cut filter, the camera offers more details over an expansive area.

Product Specifications

Image Sensor	1/2.8" progressive scan CMOS
Max. Image Resolution	1920 × 1080
Frame Rate	50Hz: 25fps @(1920 × 1080) 60Hz: 30fps @(1920 × 1080)
Min. Illumination	Color: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001 Lux @(F1.6, AGC ON) 0 lux with IR
White Balance	AUTO/MANUAL/HAUTO/ATW/INDOOR/OUTDOOR
DNR	3D DNR
WDR	≥ 120 dB
Day & Night	IR cut filter
Digital Zoom	16×
Focal Length	5 mm to 75 mm, 15× Optical
Horizontal Field of View	53.8° to 4.0° (wide-tele)
Min. Working Distance	10 mm to 1500 mm (wide to tele)
Zoom Speed	Approx. 2.4 s (optical, wide to tele)
Pan Range	360° endless
Tilt Range	-15° to 90° (auto flip)
Video Output	Switchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC)
Power	12 VDC Max.20 W (IR:7 W)
Working Temperature	-30° C to 65° C (-22° F to 149° F)
Protection Level	IP66 standard (outdoor dome) TVS 4,000 V lightning protection, surge protection and voltage transient protection
Mounting	Various mounting modes optional

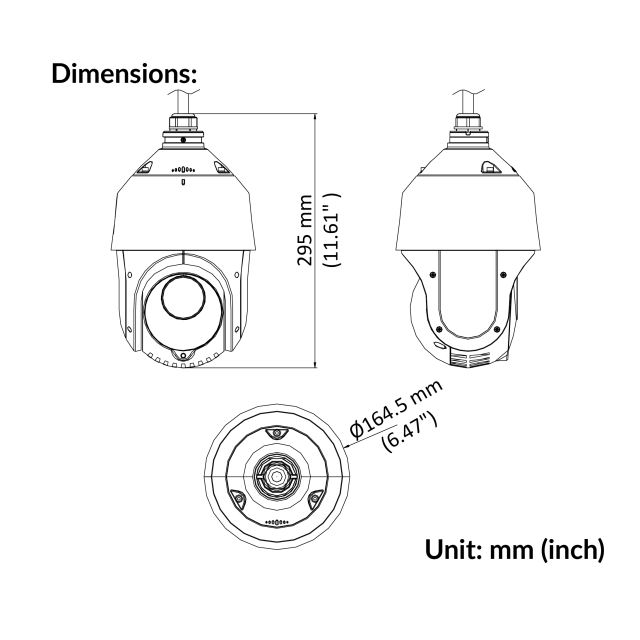

Dimension	Ø 164.5 mm × 295 mm (Ø 6.47" × 11.61")
Weight (approx.)	2Kg (4.41Ib.)

Datasheet

Download Datasheet

Customer Reviews

Write a review

Sign In With:

4-inch 2 MP 15X IR Analog Speed Dome | DS-2AE4215TI-D

Quantity

Image Sensor

1/2.8" progressive scan CMOS

Max. Image Resolution

1920 × 1080

Frame Rate

50Hz: 25fps @(1920 × 1080) 60Hz: 30fps @(1920 × 1080)

Min. Illumination

Color: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001 Lux @(F1.6, AGC ON) 0 lux with IR

White Balance

AUTO/MANUAL/HAUTO/ATW/INDOOR/OUTDOOR

DNR

3D DNR

WDR

≥ 120 dB

Day & Night

IR cut filter

Digital Zoom

16×

Focal Length

5 mm to 75 mm, 15× Optical

Horizontal Field of View

53.8° to 4.0° (wide-tele)

Min. Working Distance

10 mm to 1500 mm (wide to tele)

Zoom Speed

Approx. 2.4 s (optical, wide to tele)

Pan Range

360° endless

Tilt Range

-15° to 90° (auto flip)

Video Output

Switchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC)

Power

12 VDC Max.20 W (IR:7 W)

Working Temperature

-30° C to 65° C (-22° F to 149° F)

Protection Level

IP66 standard (outdoor dome) TVS 4,000 V lightning protection, surge protection and voltage transient protection

Mounting

Various mounting modes optional

Dimension

Ø 164.5 mm × 295 mm (Ø 6.47" × 11.61")

Weight (approx.)

2Kg (4.41Ib.)

50Hz: 25fps @(1920 × 1080)
60Hz: 30fps @(1920 × 1080)

Color: 0.005 Lux @(F1.6, AGC ON)
B/W: 0.001 Lux @(F1.6, AGC ON)
0 lux with IR

12 VDC
Max.20 W (IR:7 W)

IP66 standard (outdoor dome)
TVS 4,000 V lightning protection, surge protection and voltage transient protection
