MB10-VL is a touchless multi-biometric identification terminal featuring ZKTeco’s innovative Visible Light Facial Recognition technology.
With the latest algorithm and Visible Light facial recognition technologies, the device can recognize a target in the distance from 30cm to 50cm. It will automatically operate when it detects a human face in the detection distance to deliver better recognition quality in terms of speed and accuracy than the previous near-infrared facial recognition terminals.
With the applied Deep Learning algorithm, the pose angle tolerance and anti-spoofing ability against the dynamic environment and various spoofing attacks have been greatly enhanced.
Together with the world’s cutting-edge 3D Neuron Fingerprint Algorithm and comprehensive support in mainstream card modules, MB10-VL must be the best fit in various working environments satisfying different customer’s needs.
Product Specifications
| OS: |
Linux |
| Memory: |
256MB RAM/256MB Flash |
| Communication: |
TCP/IP, USB Host, Wi-Fi (optional) |
| Face Capacity: |
100 |
| Fingerprint Capacity： |
500 |
| Transaction Capacity: |
50,000 |
| AC Adapter: |
12V, 1.5A |
| Operating Temperature: |
0°C- 45°C |
| Operating Humidity: |
20%-80% |
| Standard Functions： |
ADMS, DST, Self-service Query, Automatic Status Switch, T9 Input, Camera, 9-digit User ID, Multiple Verification Methods, Bell Scheduling, SSR |

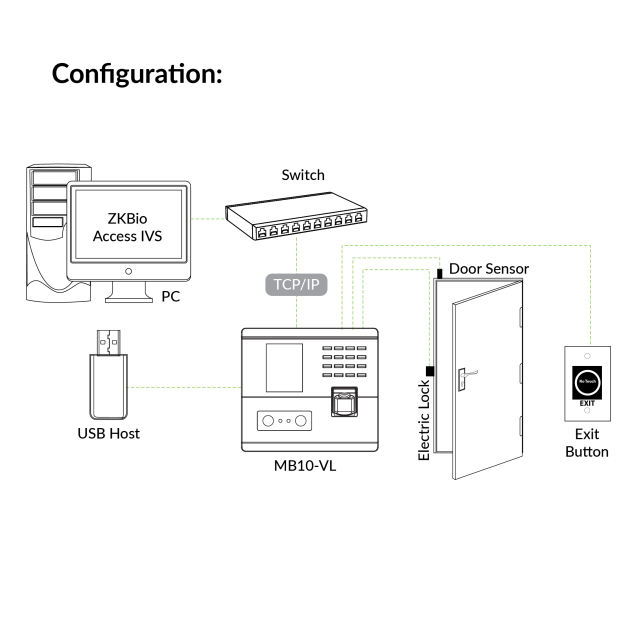

| Access Control Interface: |
3rd Party Electric Lock, Door Sensor, Exit Button |
| Compatibility: |
ZKBioAccess IVS (T&A) |

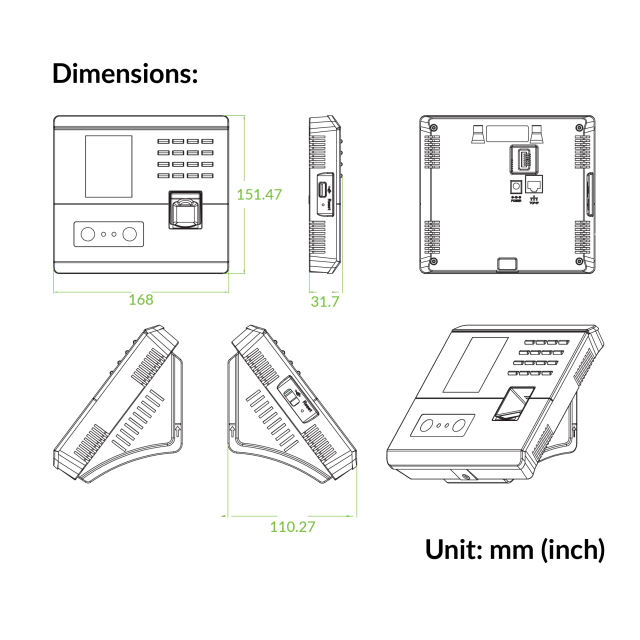

| Dimensions(W*H*D)： |
168.0*151.5*31.7 (mm) |
| Installation： |
Wall mounted |
