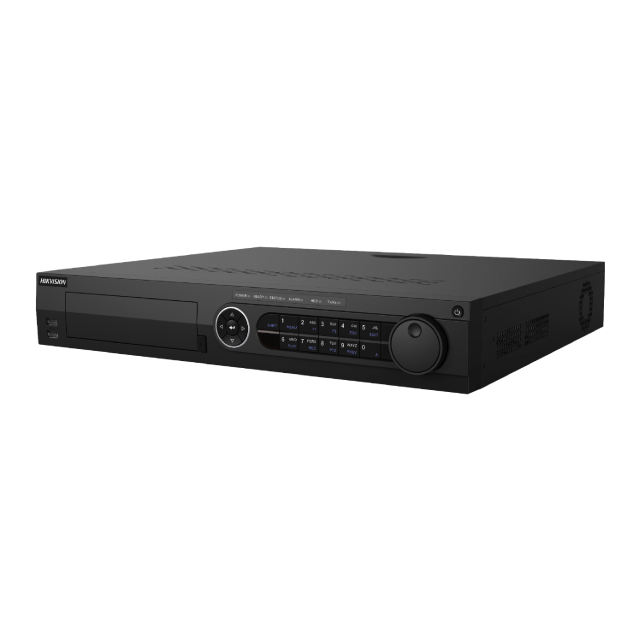

iDS-7332HQHI-M4/S
16-ch 1080p 1.5U H.265 AcuSense DVR
Key Feature
- Up to 32-ch analog camera inputs and 4 SATA interfaces
- H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 video compression
- Up to 1080p@15 fps encoding capability
- HDTVI/AHD/CVI/CVBS/IP video inputs
- Up to 48-ch network camera inputs
- POS triggered recording and POS information overlay
Product Specifications
| Video Compression |
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Encoding Resolution |
When 1080p Lite mode is not enabled:
4 MP Lite/1080p/720p/VGA/WD1/4CIF/CIF;
When 1080p Lite mode is enabled:
4 MP Lite/1080p Lite/720p Lite/VGA/WD1/4CIF/CIF
|
| IP Video Input |
16-ch (up to 48-ch)
Up to 6 MP resolution
Support H.265+/H.265/H.264+/H.264 IP cameras
|
| Analog Video Input |
32-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
|
| Remote Connection |
128 |
| Network Protocol |
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, SNMP
|
| Power Supply |
100 to 240 VAC, 50 to 60 Hz |
| Consumption |
≤ 40 W (without HDD)
|
| Working Temperature |
-10 °C to 55 °C (14 °F to 131 °F)
|
| Working Humidity |
10% to 90%
|
Datasheet
Download Datasheet
