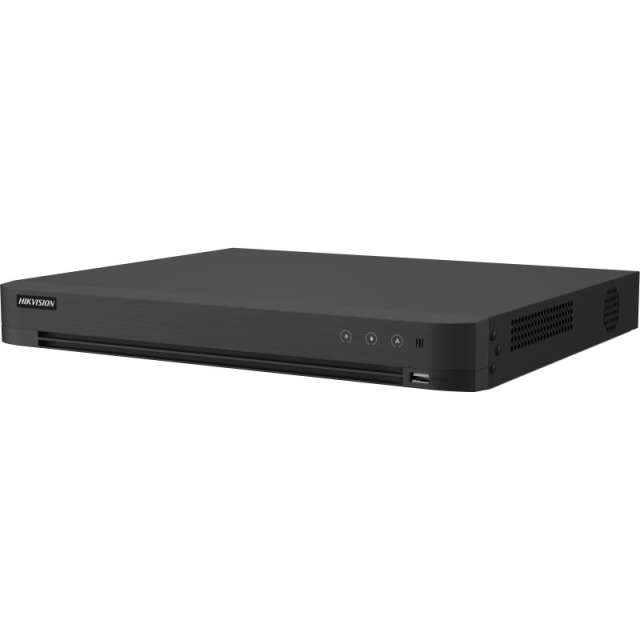

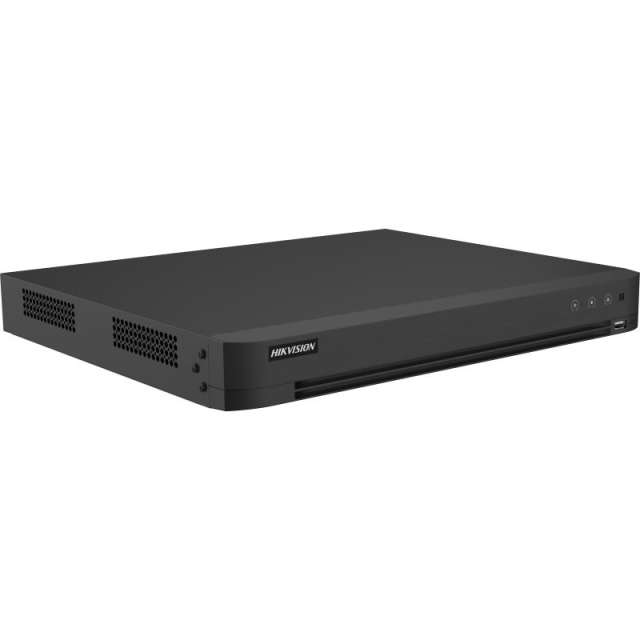

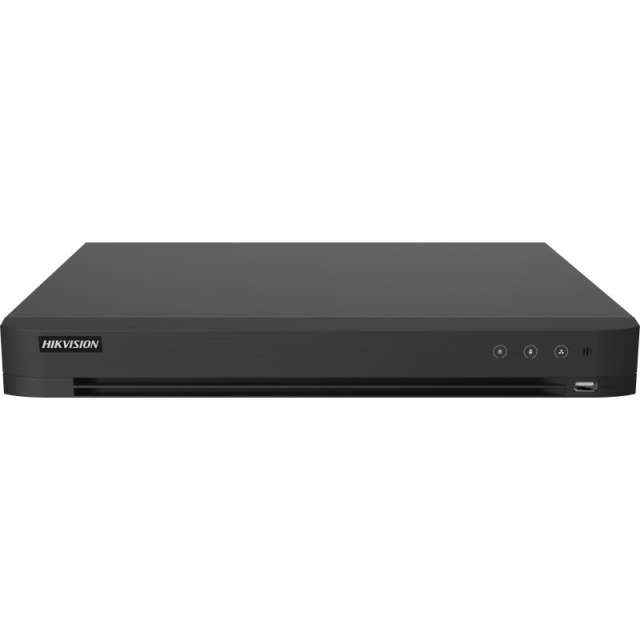

iDS-7216HQHI-M2/XT
16-ch 1080p 1U H.265 AcuSense DVR
Product Specifications
Face Picture Comparison
|
4-ch face picture comparison alarm (HD analog camera)
|
Face Picture Library
|
Up to 16 face picture libraries;
HDD damage will not cause data loss in the face picture library, because the library has
been backed up by HDD and flash.
|
IP Video Input
|
8-ch (up to 24-ch), each up to 4 Mbps
Support H.265+/H.265/H.264+/H.264 IP cameras
|
Analog Video Input
|
16-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
|
Two-Way Audio
|
1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
|
Encoding Resolution
|
When 1080p Lite mode is not enabled:
3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF;
When 1080p Lite mode is enabled:
3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF
|
Video Bitrate
|
32 Kbps to 6 Mbps
|
Dual-stream
|
Support
|
Alarm In/Out
|
N/A (optional to support)
|
Total Bandwidth
|
256 Mbps
|
SATA
|
2 SATA interface, up to 12 TB capacity for each disk
|
Capacity
|
up to 12 TB capacity for each disk
|
Power Supply
|
12 VDC, 3.3 A
|
Power Consumption
|
≤ 40 W
|
Working Temperature
|
-10 °C to 55 °C (14 °F to 131 °F)
|
Working Humidity
|
10% to 90%
|
Weight
|
≤ 2 kg (4.4 lb)
|
Dimension (W × D × H)
|
385 × 315 × 52 mm (15.2 × 12.4 × 2.0 inch)
|
