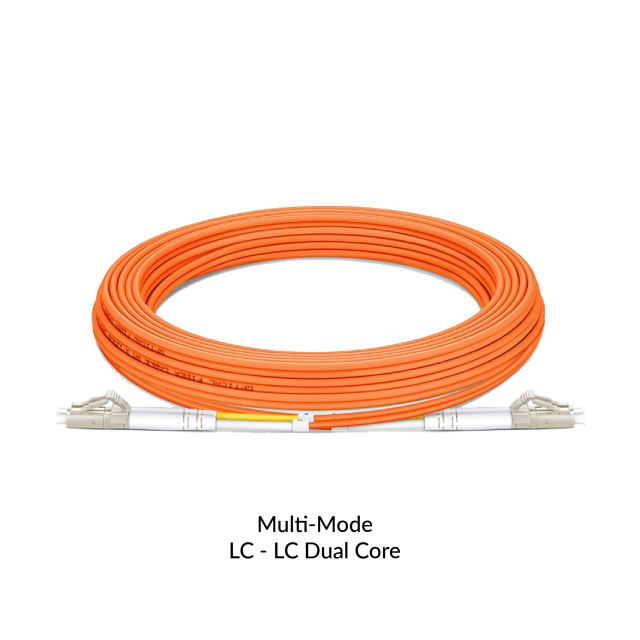

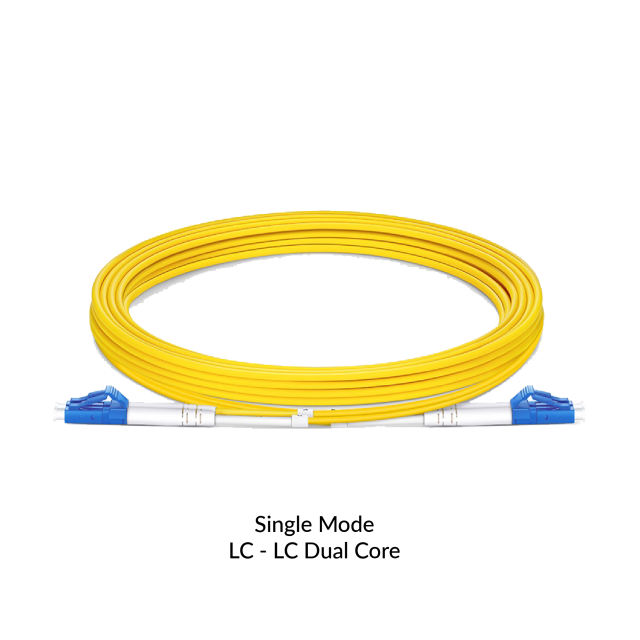

Fiber Optic Patch Cable (Duplex / Dual Core)
Fiber cable LC-LC Single (Multi) Mode
S$12.00
S$24.00
(Excluding GST)
Connector Type |
LC-LC / SC-SC |
Available Cable Lengths |
1m/2m/3m/4m/5m |
Cable Diameter |
62.5/125 μm |
Available Cable Mode |
Yellow for Single Mode / Orange for Multi Mode |
Insertion Loss |
≤0.2 db |
Connector Return Loss |
PC≥ 45 db, UPC≥50, APC≥60 |
Wavelength |
850nm/1300nm |
Min. Bend Radius (Fiber Cable) |
20/10D (Dynamic/Static) |
Repeatability |
≤ 0.1 db |
Tensile Force |
≥ 70N ~ ≥ 90N |
Mechanical Durability |
≥ 1000 times |
Cable Jacket |
PVC |
Operating Temperature |
-20 °C ~85 °C |
Storage Temperature |
-40 °C ~80 °C |
